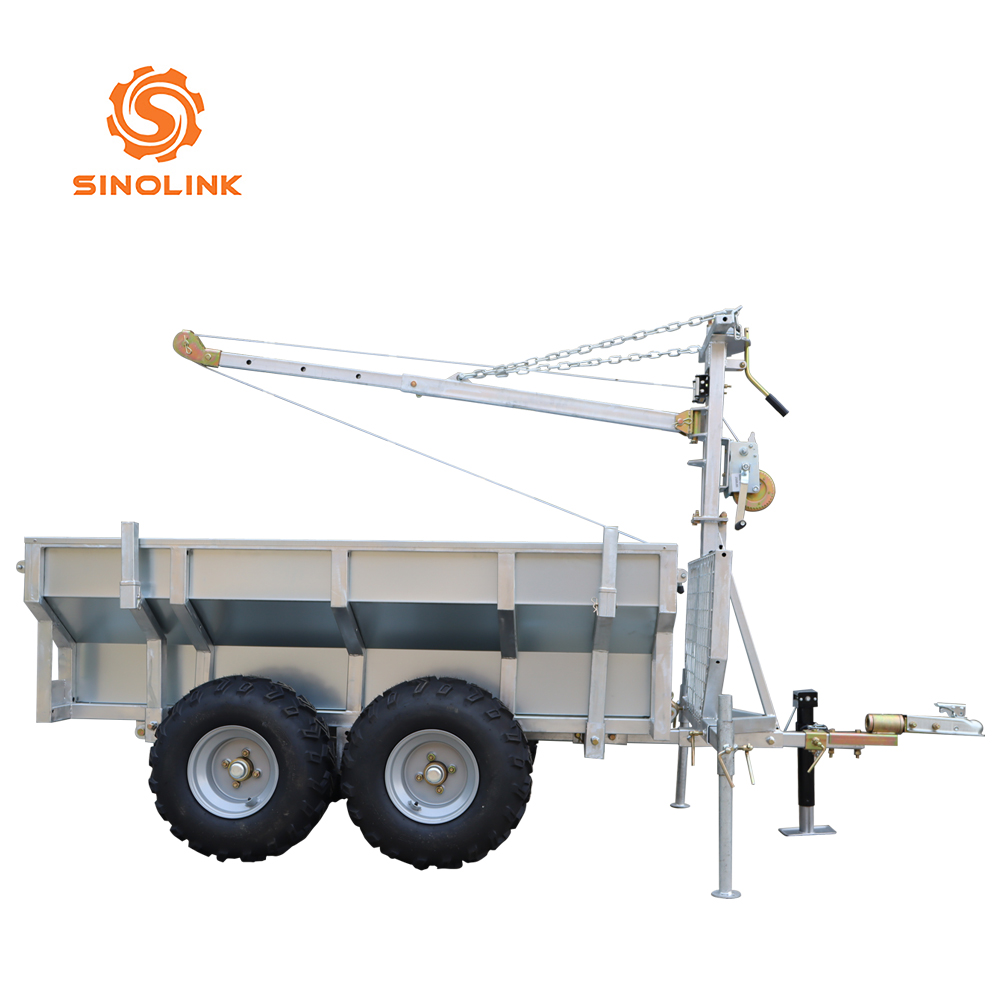

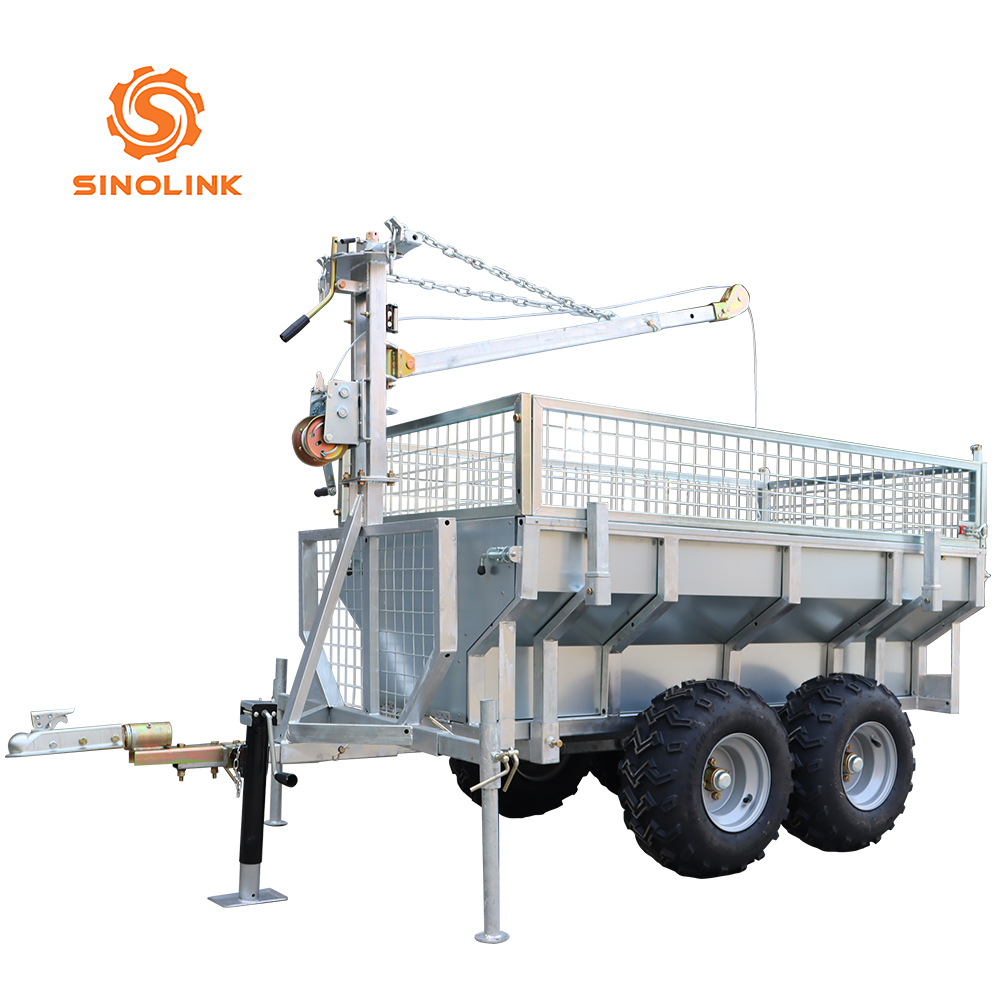

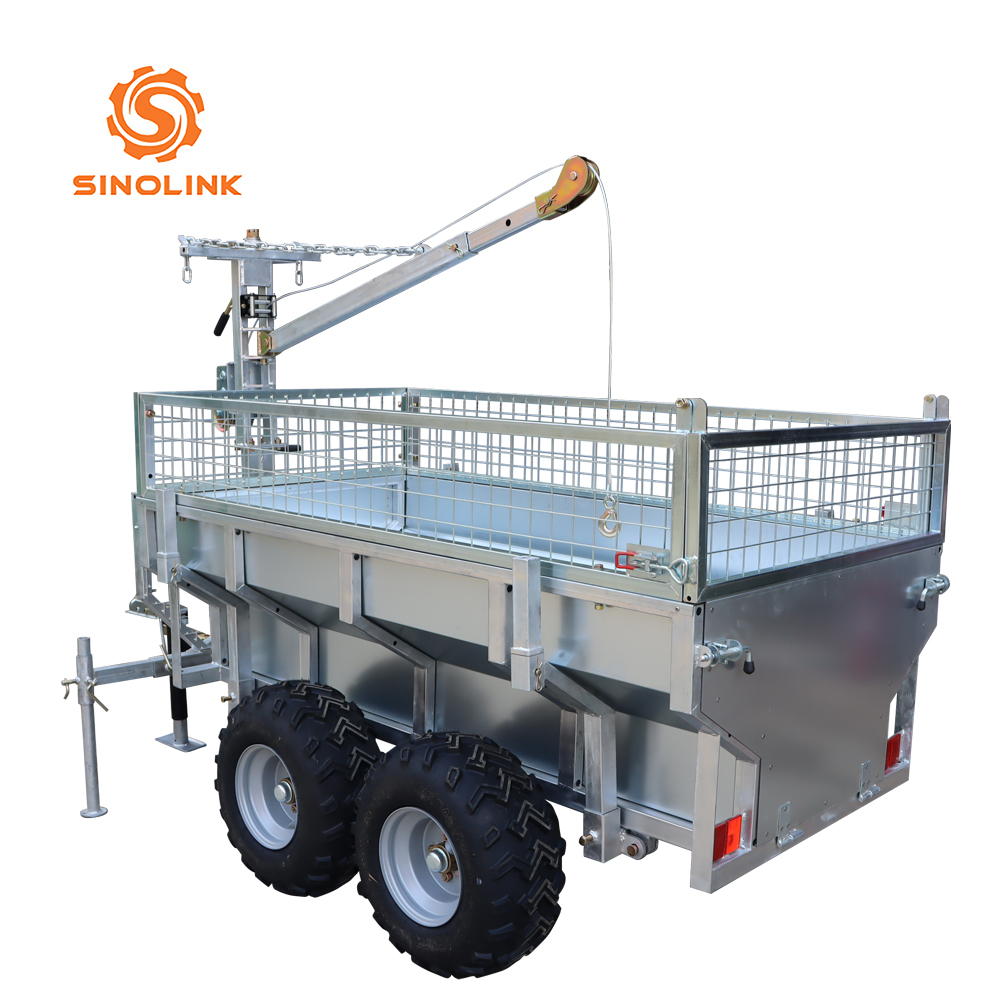

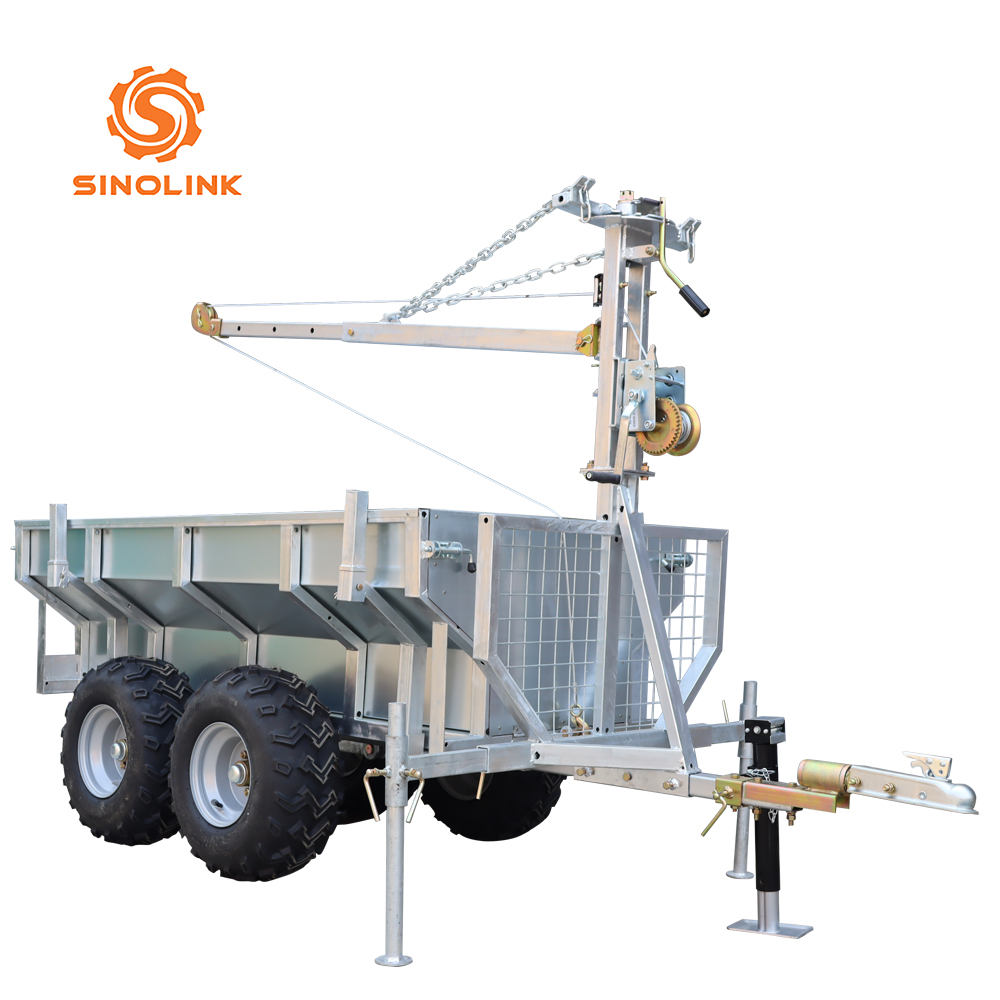

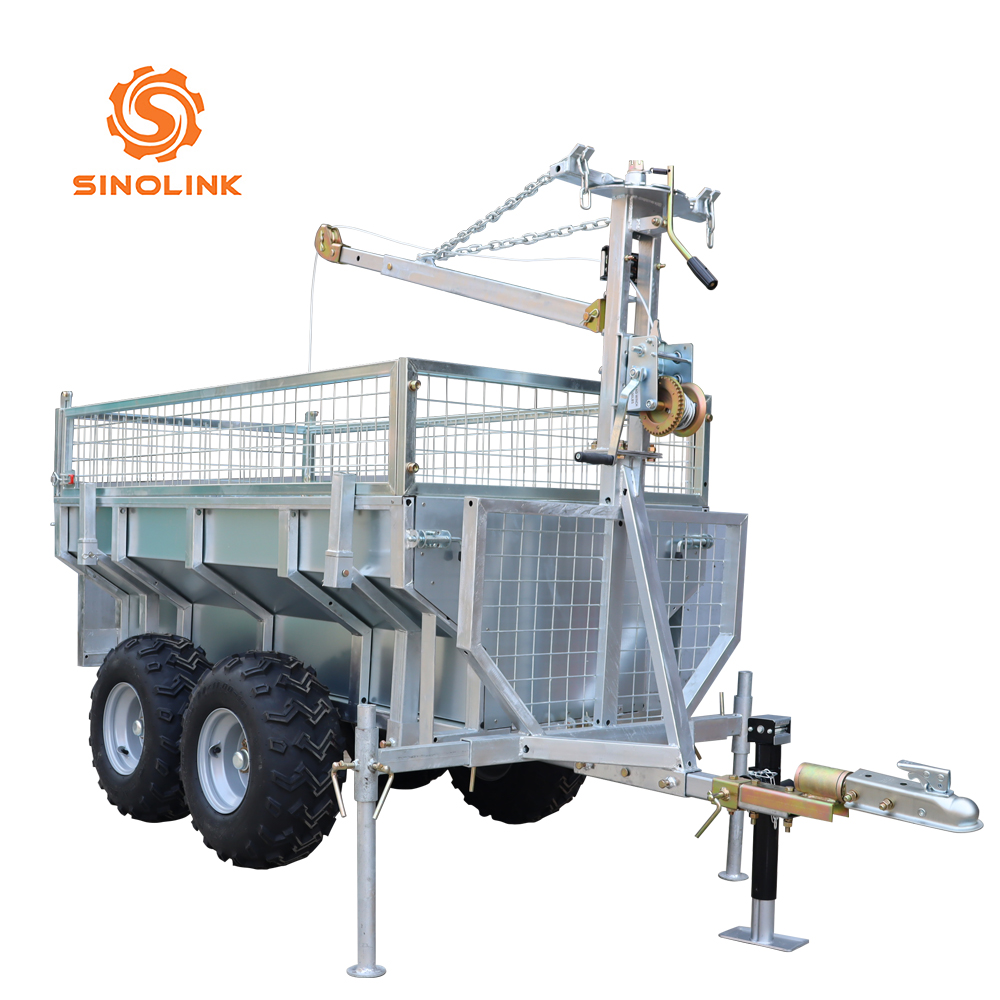

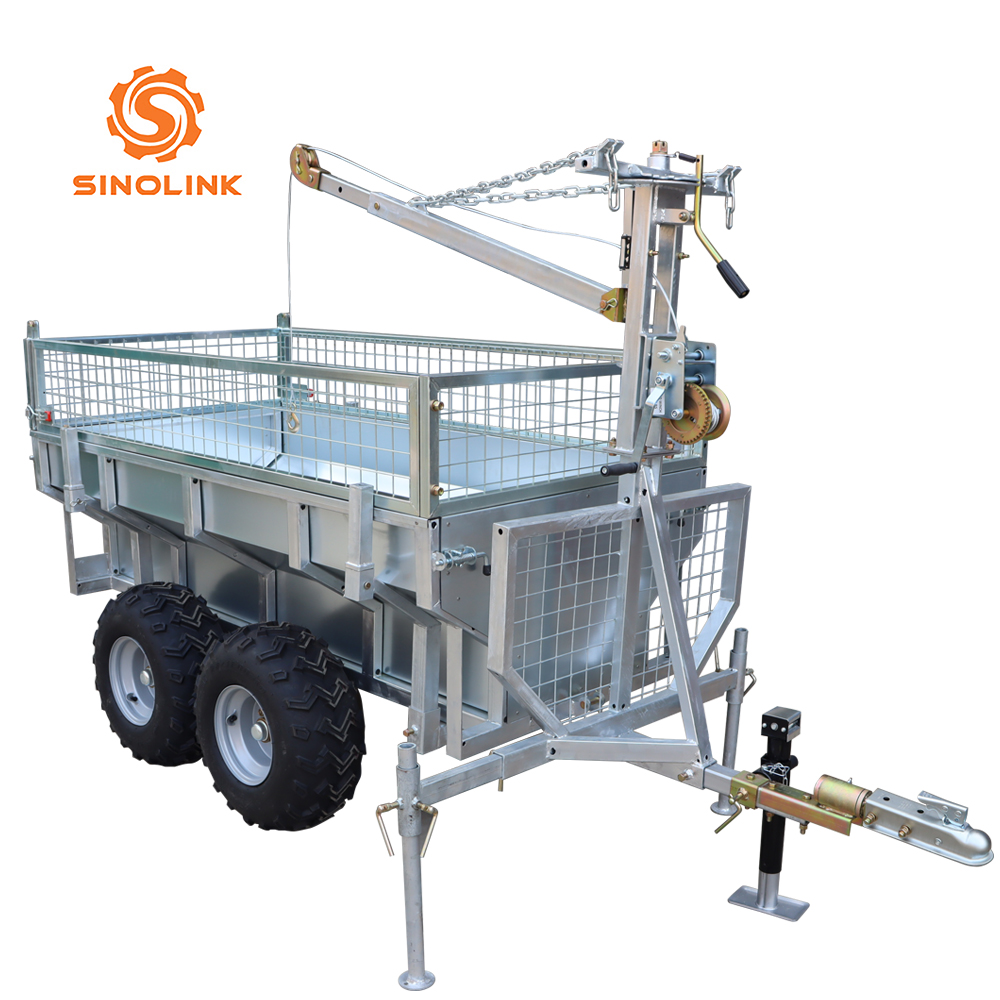

SINOLINK 1000kgs ATV Timber Wood Log Trailer TB1000

It’s strong, galvanized steel, lightweight design allows for easy manoeuvres within tight inspection paths.
The trailer is specially designed to fit comfortably between the average tree line, and yet still carries a large load of logs stably.
Each trailer is fitted with heavy duty tires and lubricated swinging axles that are well capable of travelling over any terrain and carrying up to 1 tonne logs.

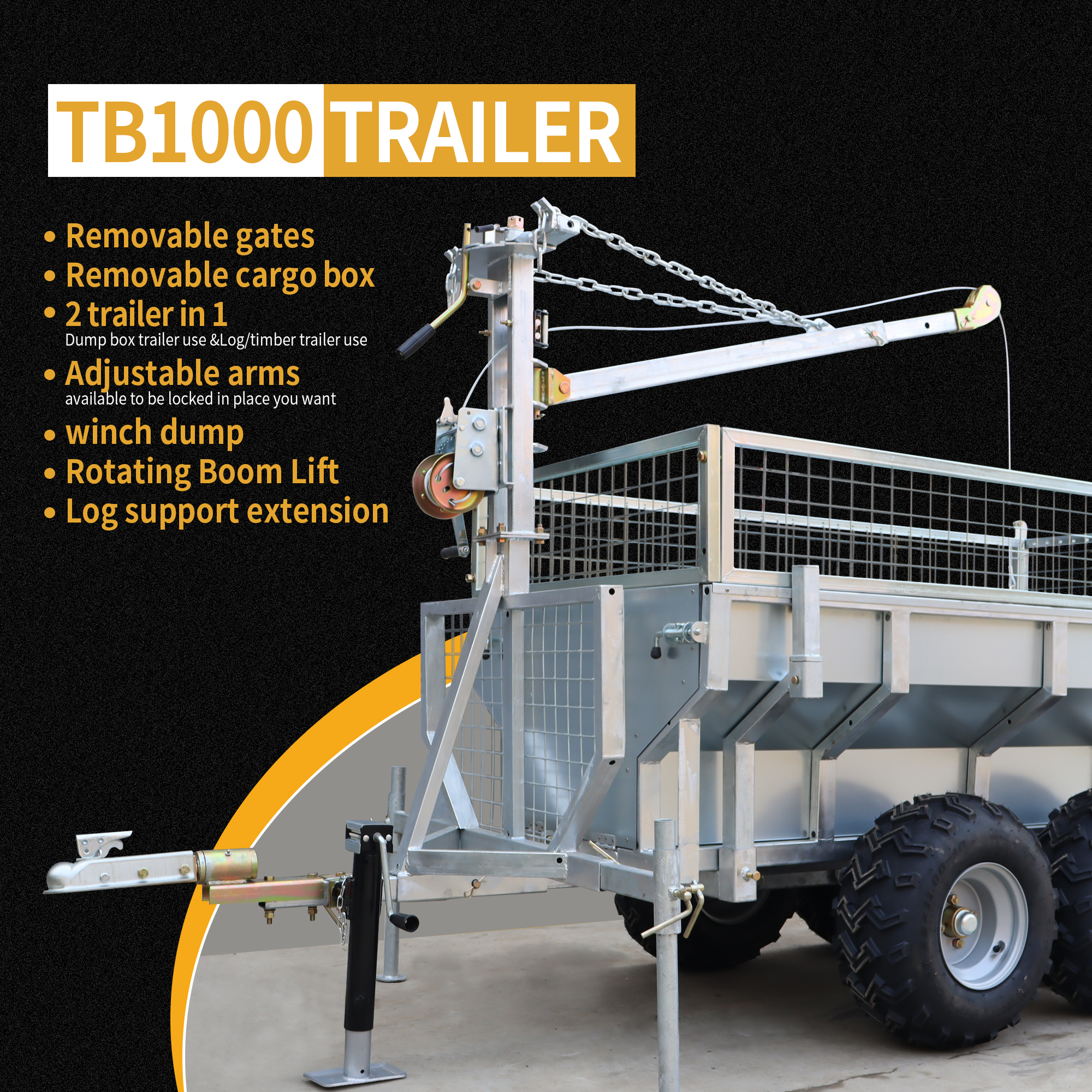

This product also features removable side bars for easy loading/unloading of timber.
The trailer connects to tractor/ATV by a rotating, lubricated, 50mm ball hitch.

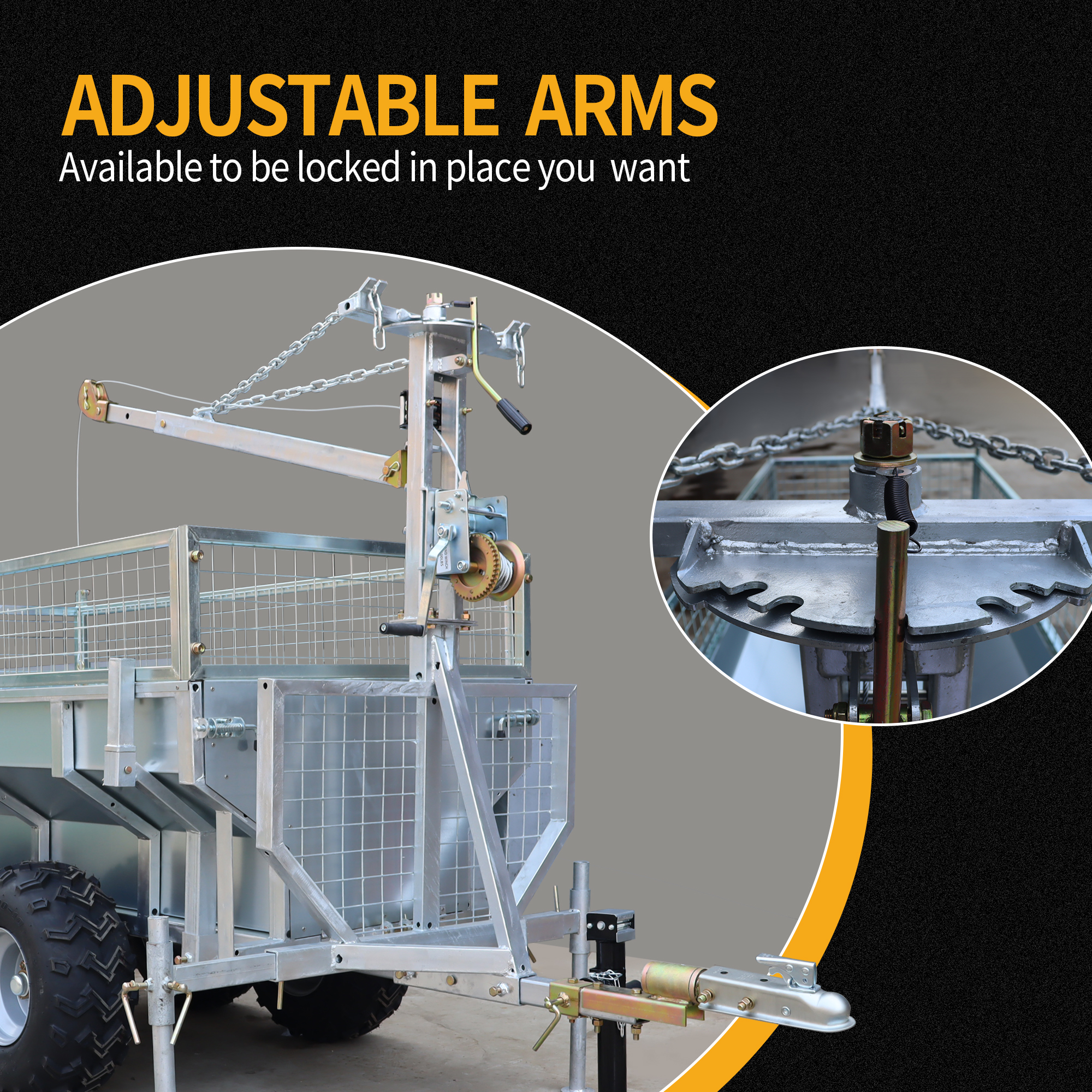

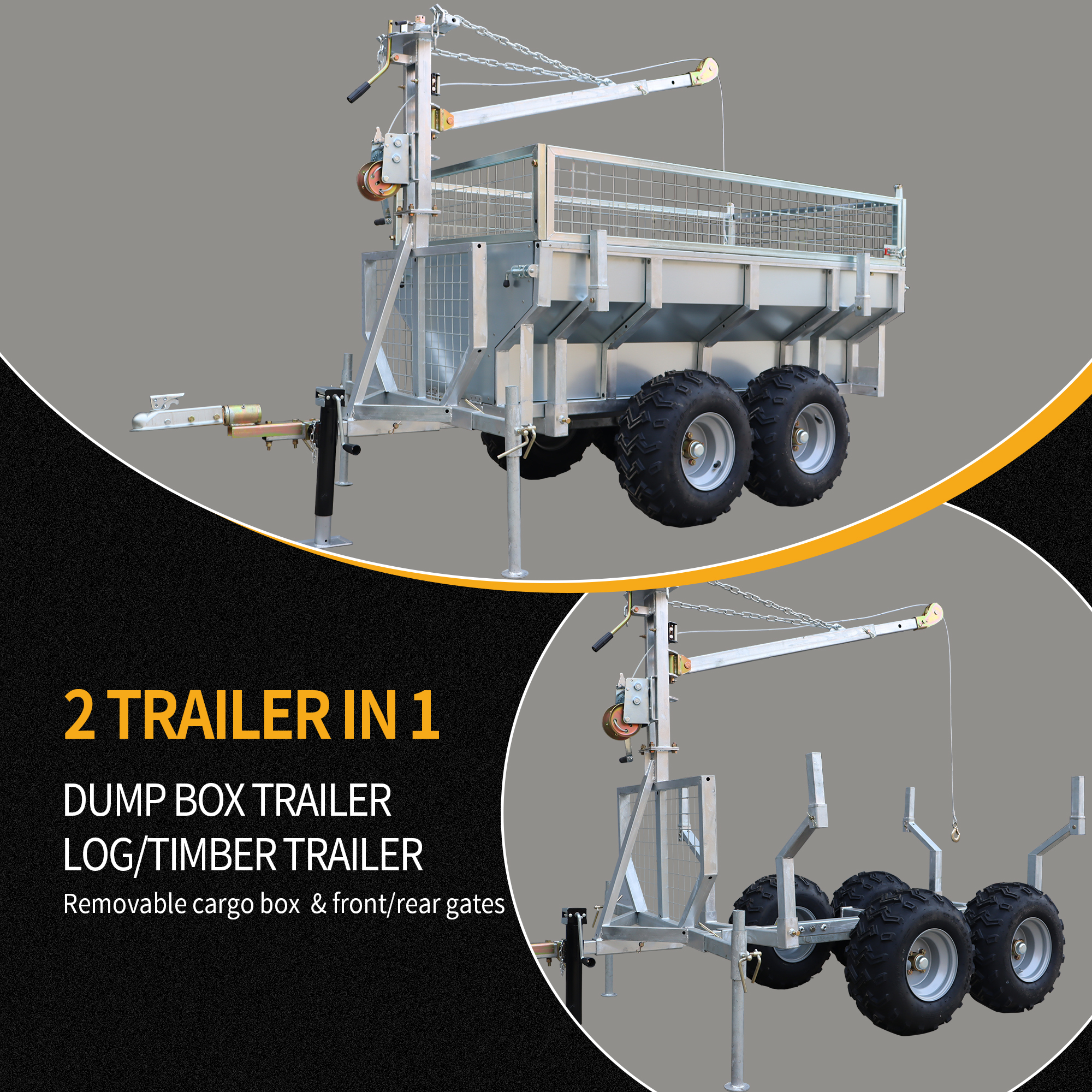

Include a galvanized steel cargo box, with a hinged rear door which when used with the crane winch, converts the Log trailer to a tipping trailer, Wood supports (4 pcs).

SINOLINK 1000kgs ATV Timber Wood Log Trailer

Overall size	3040×1020×960mm
Box size	2000×1020/520×540mm
Box material	1.5mm galvanized sheet
Surface Finish	Powder coating (colors optional),hot galvanized optional
Draw bar length	1000mm
Draw bar material	60x60x3.5mm
Loading capacity	1000kgs
Net.Weight	340kgs

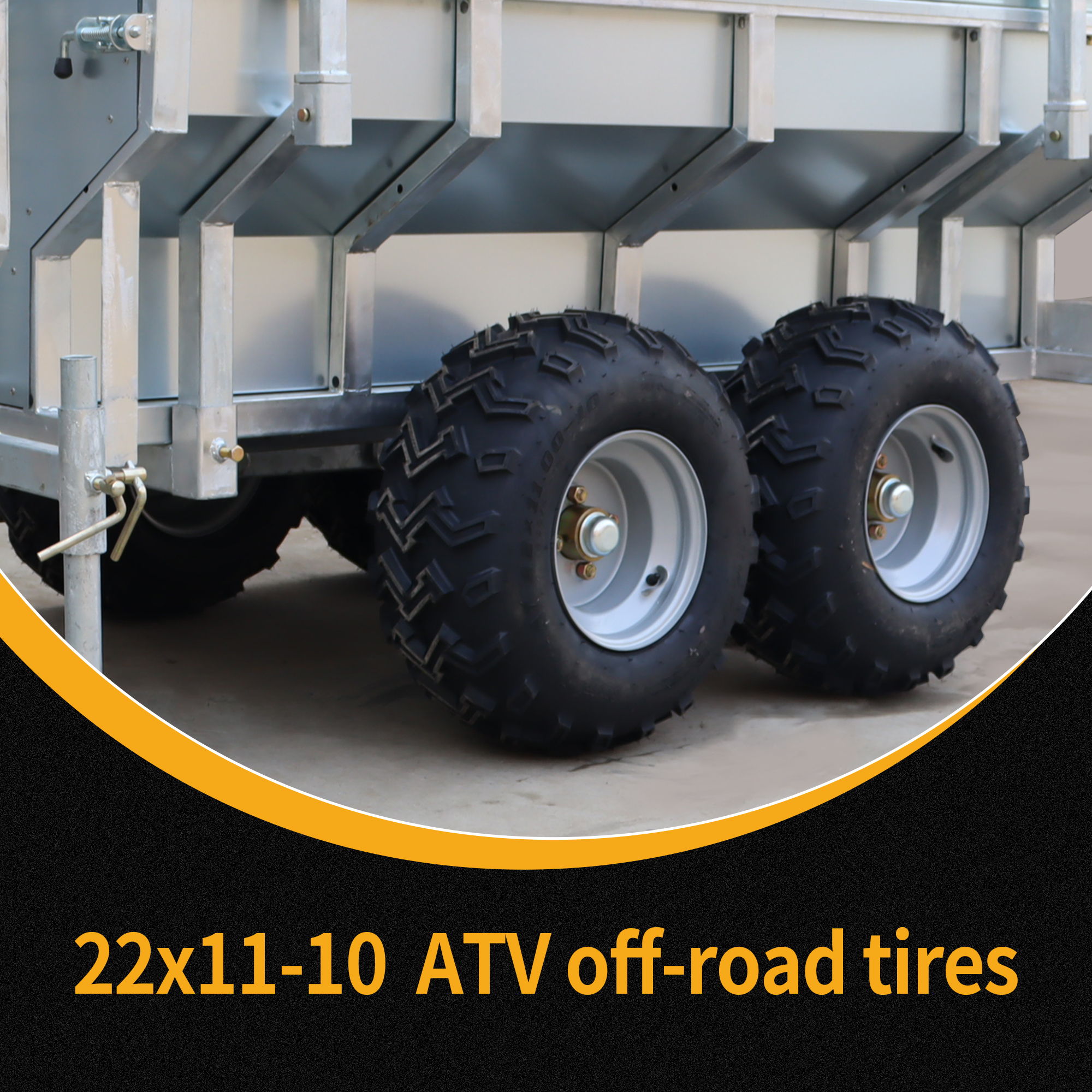

Tire size	22x11-10(optional)
Quantity of tires	4

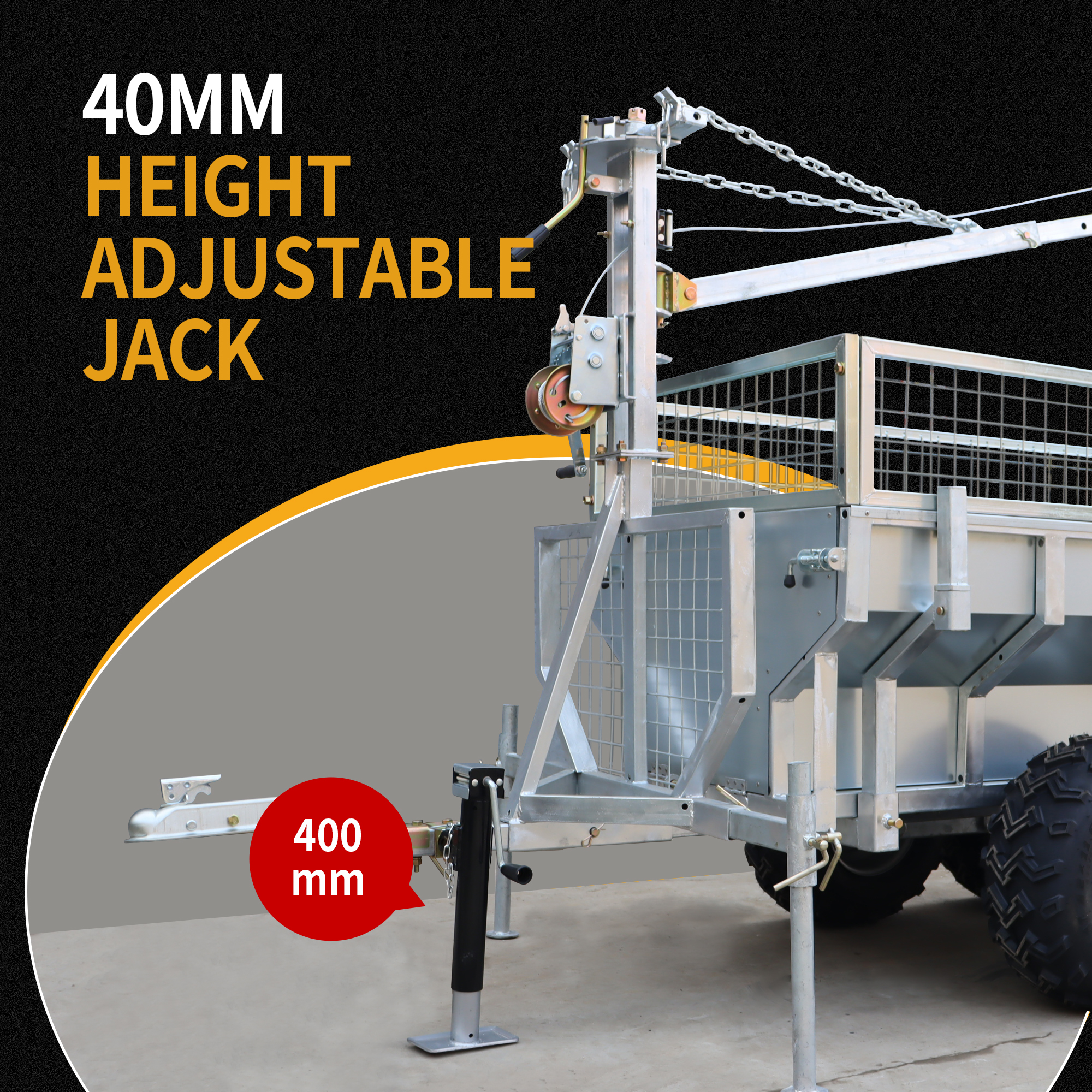

Jack	yes
Winch	2500LBS manual winch
Coupler	Φ50mm,2000kgs
Packing method	Iron frame
Warranty	12 months (not including tires)
Packing size	2100x1150x750mm
